Introduction: Car Heads Up Display (Arduino + ELM327)

Some years ago I had the chance to drive a C6 Corvette with a HUD and loved it. The ability to see your speed and RPM without taking your eyes off the road made driving much more enjoyable.

For a long, long time I've wanted to make a HUD for my own car. While doing some research about OBD2 and Arduino car hacking, I decided to make one from scratch and this instructable shows how you can make one, too!

Supplies

Step 1: Print/Assemble 3D Printed Parts

Download link to 3D printable Files

Note, the OLED mount can be glued anywere you would like on the HUD as long as you have enough wire to connect the OLED to the custom PCB.

Step 2: Fab/Solder PCB

Download link to the custom PCB gerber files

You can use the above gerber files to order a PCB through a company such as JLCPCB.

Step 3: External Wiring

In order to control power to both the ELM327 and custom PCB without having to plug/unplug the OBD2 extension cable, you will need to rewire the power and ground signals. This will require you to open up the OBD scanner's case and access the device's wiring.

  1. Using the above OBD2 pinout, cut the 12V wire in the middle
  2. Strip both ends of the cut wire
  3. Cut and strip 2 red wires equal to the distance between the OBD2 12V pin and the power switch on the HUD
  4. Cut and strip 1 red and 1 black wire equal to the distance between the OBD2 power pins and the custom PCB's screw terminal
  5. Solder the 12V wires so that the HUD's switch controls power to both the ELM327 and the custom PCB
  6. Using the above OBD2 pinout, solder the black wire to the OBD2 GND pin and screw the other end of the black wire to the custom PCB's screw terminal

See the above project schematic for help.

Next, wire the 3 pins on the custom PCB labeled "LED PWR" to the potentiometer on the side of the HUD.

Lastly, wire the female JST connector wires to the OLED display.

Step 4: Prepare/Mount HUD Plastic

  1. Take the round plexiglass piece, reflective film sheet, sharpie, and scissors
  2. Use the plexiglass piece and sharpie to trace a circle on the reflective film sheet
  3. Use the scissors to cut out the circle
  4. Stick the cut-out reflective film onto one of the sides of the round plexiglass piece
  5. Insert the completed assembly into the display slot on the HUD (reflective film facing the driver)

Step 5: Upload Code

The code for the ESP32 and the Teensy 3.5 can be found here.

Note: Ensure you have inserted the SD card into the Teensy's SD receptacle. This will allow you to record your vehicle's speed/rpm data real-time in a CSV format. Also note that you can use the Python code to graph your vehicle's data from the SD card. See the graph above for an example of this.

Step 6: Video

Be the First to Share

Did you make this project? Share it with us!

Recommendations

  • Made with Math Contest

    Made with Math Contest
  • Halloween Contest

    Halloween Contest
  • Lamps and Lighting Contest

    Lamps and Lighting Contest
Sours: https://www.instructables.com/Car-Heads-Up-Display-Arduino-ELM327/

Multimeter Heads-Up Display With Arduino Glasses #ArduinoMonday #Arduino



8109911474749909385

via Arduino Blog

If you’re in a job where you have to take readings inside a live electrical panel, one thing that’s inconvenient, and even dangerous at times, is having to look away from your hands to read your multimeter. With hopes of “making an engineer’s life easier and safer,” Mauer solved this problem using an Arduino Pro Micro and a BLE module to show data from a Bluetooth-enabled multimeter. Now he can see data on a display that looks similar to a Google Glass device. Perhaps this method could be expanded to other devices in the future!



Read more


50-06Each Monday is ArduinoMonday here at Adafruit! Be sure to check out our posts, tutorials and new Arduino related products. Adafruit manufactures the Arduino right here in the United States in cooperation with arduino.cc. We have a huge selection of Arduino accessories and all the code and tutorials to get you up and running in no time!


Stop breadboarding and soldering – start making immediately! Adafruit’s Circuit Playground is jam-packed with LEDs, sensors, buttons, alligator clip pads and more. Build projects with Circuit Playground in a few minutes with the drag-and-drop MakeCode programming site, learn computer science using the CS Discoveries class on code.org, jump into CircuitPython to learn Python and hardware together, TinyGO, or even use the Arduino IDE. Circuit Playground Express is the newest and best Circuit Playground board, with support for CircuitPython, MakeCode, and Arduino. It has a powerful processor, 10 NeoPixels, mini speaker, InfraRed receive and transmit, two buttons, a switch, 14 alligator clip pads, and lots of sensors: capacitive touch, IR proximity, temperature, light, motion and sound. A whole wide world of electronics and coding is waiting for you, and it fits in the palm of your hand.

Join 30,000+ makers on Adafruit’s Discord channels and be part of the community! http://adafru.it/discord

Have an amazing project to share? The Electronics Show and Tell is every Wednesday at 7pm ET! To join, head over to YouTube and check out the show’s live chat – we’ll post the link there.

Join us every Wednesday night at 8pm ET for Ask an Engineer!

Follow Adafruit on Instagram for top secret new products, behinds the scenes and more https://www.instagram.com/adafruit/

CircuitPython – The easiest way to program microcontrollers – CircuitPython.org


Maker Business — The Defense Production Act and the global supply chain

Wearables — A faux frozen style

Electronics — Long live labels!

Python for Microcontrollers — Python on Microcontrollers Newsletter: Python Reaches #1, 3K Core CircuitPython PRs and much more! #Python #Adafruit #CircuitPython @micropython @ThePSF

Adafruit IoT Monthly — No-Code IoT with WipperSnapper, Beaming Internet across the Congo, and more!

Microsoft MakeCode — MakeCode Thank You!

EYE on NPI — Maxim’s Himalaya uSLIC Step-Down Power Module #EyeOnNPI @maximintegrated @digikey

New Products – Adafruit Industries – Makers, hackers, artists, designers and engineers! — JP’s Product Pick of the Week — 4pm Eastern TODAY! 10/11/21 @adafruit @johnedgarpark #adafruit #newproductpick

Get the only spam-free daily newsletter about wearables, running a "maker business", electronic tips and more! Subscribe at AdafruitDaily.com !



No comments yet.

Sorry, the comment form is closed at this time.

Filed under: arduino —
Tags: arduinomonday — by Zay

Comments Off on Multimeter Heads-Up Display With Arduino Glasses #ArduinoMonday #Arduino

Sours: https://blog.adafruit.com/2016/10/03/multimeter-heads-up-display-with-arduino-glasses-arduinomonday-arduin/
  1. Best tactical rpg ps4
  2. Steven universe comic au
  3. Fnaf 2 endoskeleton jumpscare

Many cars these days come with a basic Heads Up Display, or HUD. Typically, these display speed, though some also throw in a tachometer or navigational graphics too. Of course, if your car doesn’t have one of these stock, hacking in your own is always an option.

[PowerBroker2] developed this HUD in a somewhat circuitous way, but it’s effective nonetheless. An ELM327 Bluetooth OBD-II reader is hooked up to the car, collecting data on speed and RPM. This data is passed to an ESP-32 and Teensy 3.5. From reading the code, it appears the Teensy is responsible for logging data from the CAN bus on an SD card, and running a small OLED display. The ESP32 is then charged with running the LED display that actually forms the HUD. It’s then combined with a 3D-printed housing, some plexiglass, and reflective windshield film to complete the effect.

It’s a build that probably packs in more hardware than is strictly needed to get the job done, but it does indeed get the job done. Other builds we’ve seen use LED strips as a quick and tidy way to get the job done. Video after the break. Continue reading “Arduino Car HUD Does The Job”→

You shouldn’t be looking at screens when you’re driving, but what about a heads-up display? A screen that could put relevant information in your field of vision would be great, even more so if it used a Raspberry Pi. That’s exactly what [John] did, only he did it with an airplane.

First up, the legality of this build. [John]’s plane is registered as experimental, which, provided you know what you’re doing, is pretty close to ‘anything goes’ as you would want in a manned aircraft. [John] has a sufficient number of hours in his log book, and he’s built a Zenith 701.

For hardware, the hard part of this build is constructing a heads-up display. Fortunately, aftermarket HUDs exist, and [John] is using a Kivic projector, a $200 piece of equipment that’s readily available on Amazon. If you need a HUD for your car, there you go. The software is another thing entirely, with the goal of having the software decoupled from the display and data sources. This is somewhat easy to accomplish with a Raspberry Pi; the display is actually just some minimal text-based blocky graphics built in PyGame. This build is also decoupled from the data sources by building this as a user interface for Stratux, an independent Raspberry Pi-based ADS-B receiver for pilots.

There are several views available with this HUD, with the AHRS + ADS-B providing information on the aircraft’s attitude and altitude, along with a few indicators of the nearest planes. The traffic view expands on the ADS-B data, showing the nearest eight or so aircraft in the air, with a range, bearing, and difference in altitude. There’s a diagnostic window, and since [John]’s plane is a backcountry STOL thingamado that can hover in a strong wind, there’s also a digital version of a norden bombsight. It’s for dropping bags of flour onto a grass strip. You can check out [John]’s entire AirVenture presentation of the build below, with all the code available here.

Continue reading “Python And Pi Provide Heads Up Display For Your Experimental Airplane”→

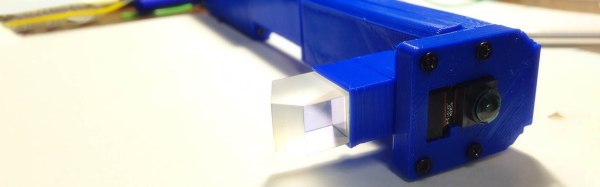

[Ricardo Ferro] didn’t want to buy a Google Glass, so he made his own.

The Raspberry Pi Zero Prism consists of a 3D-printed headset the side-pieces of which hold a variety of electronic components, including a Pi Zero running Raspbian Jessie, a Pi Noir IR camera, a WiFi/Bluetooth module and a whole mess of SMD tactile push buttons. Video output is provided by a Kopin 922K display module. This module is usually used in smart goggles and uses a prism to reflect information into the wearer’s field of view.

One application [Ricardo] envisions for this Open Source Google Glass is using it in conjunction with facial recognition software and the YouTube-favorite IR camera trick of seeing through clothing. No, he’s not using it for that idea, and you should get your mind out of the gutter. [Ricardo] wants to identify masked criminals. Setting aside the technological challenges of making that technology work, we think that walking around with x-ray specs is likely to get those specs broken off your face by someone who wears clothes for modesty purposes. Still, it’s a fascinating project and we love the way the prism and video assembly comes together.

While most of us will never set foot in a fighter jet, some of us can still try to get as close as possible. One of the most eye-catching features of a fighter jet (at least from the pilot’s point-of-view) is the heads-up display, so that’s exactly what [Frank] decided to build into his car to give it that touch of fighter jet style.

Heads-up displays use the small reflectivity of a transparent surface to work. In this case, [Frank] uses an LED strip placed on the dashboard to shine up into the windshield. A small amount of light is reflected back to the driver which is able to communicate vehicle statues without obscuring view of the road. [Frank]’s system is able to display information reported over the CAN bus, including voltage, engine RPM, and speed.

This display seems to account for all the issues we could think up. It automatically cycles through modes depending on driving style (revving the engine at a stoplight switches it to engine RPM mode, for example), the LEDs automatically dim at night to avoid blinding the driver, and it interfaces with the CAN bus which means the ability to display any other information in the future should be relatively straightforward. [Frank] does note some rough edges, though, namely with the power supply and the fact that there’s a large amount of data on the CAN bus that the Teensy microcontroller has a hard time sorting out.

That being said, the build is well polished and definitely adds a fighter jet quality to the car. And if [Frank] ever wants even more aviation cred for his ground transportation, he should be able to make use of a 747 controller for something on the dashboard, too.

Astrogun

As the Jerusalem mini Makerfaire approached, [Avishay] had to come up with something to build. His final project is something he calls ASTROGUN. The ASTROGUN is a sort of augmented reality game that has the player attempting to blast quickly approaching asteroids before being hit.

It’s definitely reminiscent of the arcade classic, Asteroids. The primary difference is that the player has no space ship and does not move through space. Instead, the player has a first person view and can rotate 360 degrees and look up and down. The radar screen in the corner will give you a rough idea of where the asteroids are coming from. Then it’s up to you to actually locate them and blast them into oblivion before they destroy you.

The game is built around a Raspberry Pi computer. This acts as the brains of the operation. The Pi interfaces with an MPU-9150 inertial measurement unit (IMU). You commonly see IMU’s used in drones to help them keep their orientation. In this case, [Avishay] is using it to track the motion and orientation of the blaster. He claims nine degrees of freedom with this setup.

The Pi generates the graphics and sends the output to a small, high-brightness LCD screen. The screen is mounted perpendicular to the player’s view so the screen is facing “up”. There is a small piece of beam splitting glass mounted above the display at approximately a 45 degree angle. This is a special kind of glass that is partially reflective and partially translucent. The result is that the player sees the real-world background coming through the glass, with the digital graphics overlaid on top of that. It’s similar to some heads-up display technologies.

All of the electronics fit either inside or mounted around a toy gun. The display system was attached with a custom-made fiberglass mount. The code appears to be available via Github. Be sure to watch the video of the system in action below. Continue reading “ASTROGUN Is Like Asteroids On Steroids”→

This edition of Fail of the Week is nothing short of remarkable, and your help could really get the failed project back on track. [Snipor Bob] wanted to replace all of the dashboard readouts on his Mustang and got the idea of making the hacked hardware into a Heads-Up Display. What you see above is simply the early hardware proof of concept for tapping into the vehicle’s data system. But there’s also an interesting test rig for getting the windshield glass working as a reflector for the readout.

Continue reading “Fail Of The Week: CAN-Bus Attached HUD For Ford Mustang”→

[Cmonaco3’s] girlfriend wanted a better way to control her iPod when driving. She didn’t want to take her eyes of the road and asked him if he could help. He ended up building a heads up display which reads out track information and offers a few simple buttons for control.

The display includes controls for track forward, track back, and play/pause. Those buttons, along with the LCD screen, mount on the windshield using a suction cup. This way the driver doesn’t have to completely remove focus from the road to control the iPod which is sitting in the passenger’s seat.

To accomplish this [Cmonaco] used a dock connector breakout board for communication between an Arduino and the iPod. The Arduino pulls song information to be displayed on the graphic LCD screen, and sends commands to the iPod when it detects a button push. See a quick demo of the setup after the break.

Continue reading “Heads Up Controls For Your IPod”→
